How We Repaired a Bowing Concrete Block Wall in Hillsborough, NJ

Discover how we fixed a cracked Basement Wall with Carbon Fiber Straps in Hillsborough, NJ

When a homeowner from Hillsborough, NJ, reached out to us, they were worried about their basement wall. The concrete block wall was starting to bow inward, and horizontal cracks had formed across the blocks. That kind of damage usually points to excessive soil pressure on the outside of the foundation. Over time, the moisture in the soil builds up and begins pushing against the wall, causing it to bend or crack.

How the Client Found Us

The homeowner found us on Google while searching for terms like “cracked basement wall repair in New Jersey” and similar terms. They wanted a reliable way to stop the wall from getting worse without breaking the bank. Like all our clients, they didn’t have to schedule an on-site inspection. Instead, they sent us clear photos of the damaged area. We reviewed the images, evaluated the situation, and gave them a free estimate — all remotely.

Our Repair Approach

Once we reviewed the photos, it was clear that the best fix for this problem was a carbon fiber wall reinforcement system. Carbon fiber straps are one of the most dependable ways to stabilize cracked or bowing basement walls. They prevent further movement while restoring the wall’s strength and alignment.

We guided the homeowner through the process step by step. Here’s how the repair was done:

1. Surface Preparation:

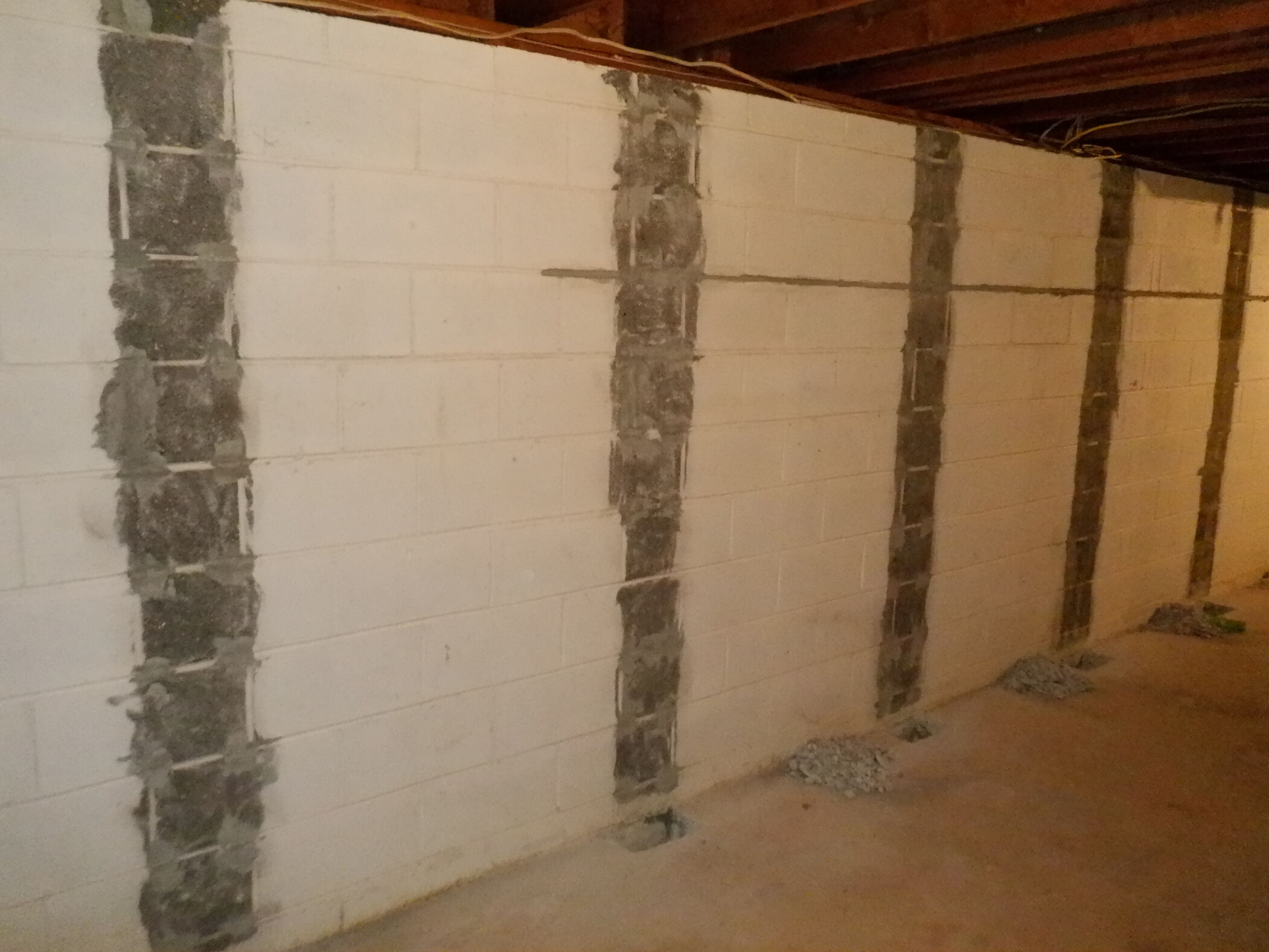

   The first step was to grind the wall surface to remove any paint, dirt, or uneven coating. This ensures that the epoxy used for bonding adheres properly to the bare concrete blocks.

2. Crack Repair and Strap Installation:

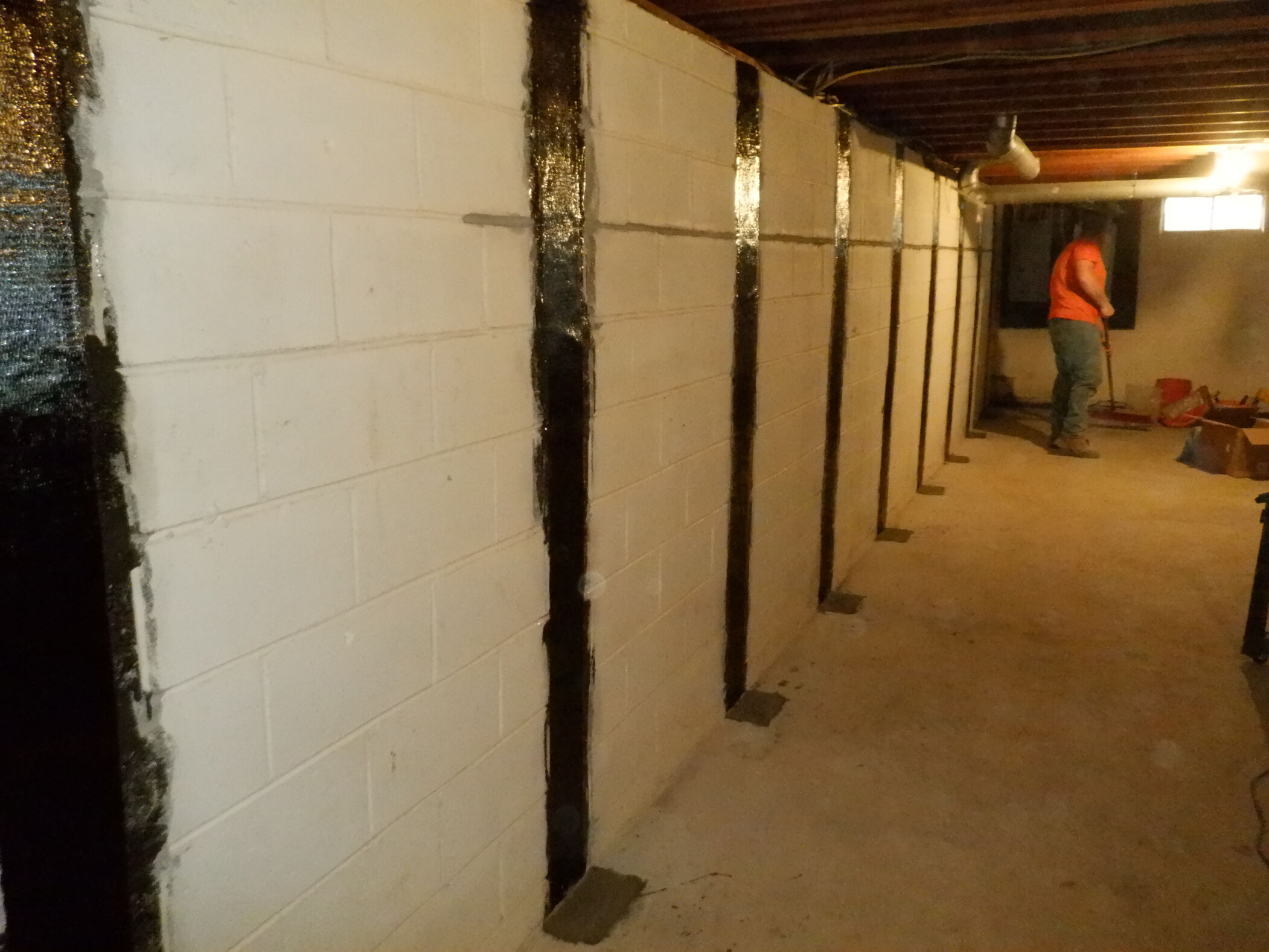

   We repair the wall cracks using fast-setting high-strength cement. Then the vertical carbon fiber straps were set in place and pressed firmly to ensure maximum bonding. Each strap was aligned over the cracks and areas showing the most deflection.

3. Final Finish:
   Once cured, the cement and straps form a permanent bond with the wall. The result is a solid, stable surface that resists further bowing or cracking. The carbon fiber blends well with the wall and can be painted over for a clean finish.

Why This Carbon Fiber Straps Wall Reinforcement Method Works

Carbon fiber straps have become the go-to method for repairing cracked or bowing basement walls. They are stronger than steel in tension, lightweight, and do not corrode over time. Unlike traditional steel beams, carbon fiber doesn’t take up interior space or require heavy excavation outside the foundation.

This approach also stops the wall from moving any further, which means no more spreading cracks and no risk of a full structural failure. It’s a permanent solution that works for both concrete block and poured concrete foundations.

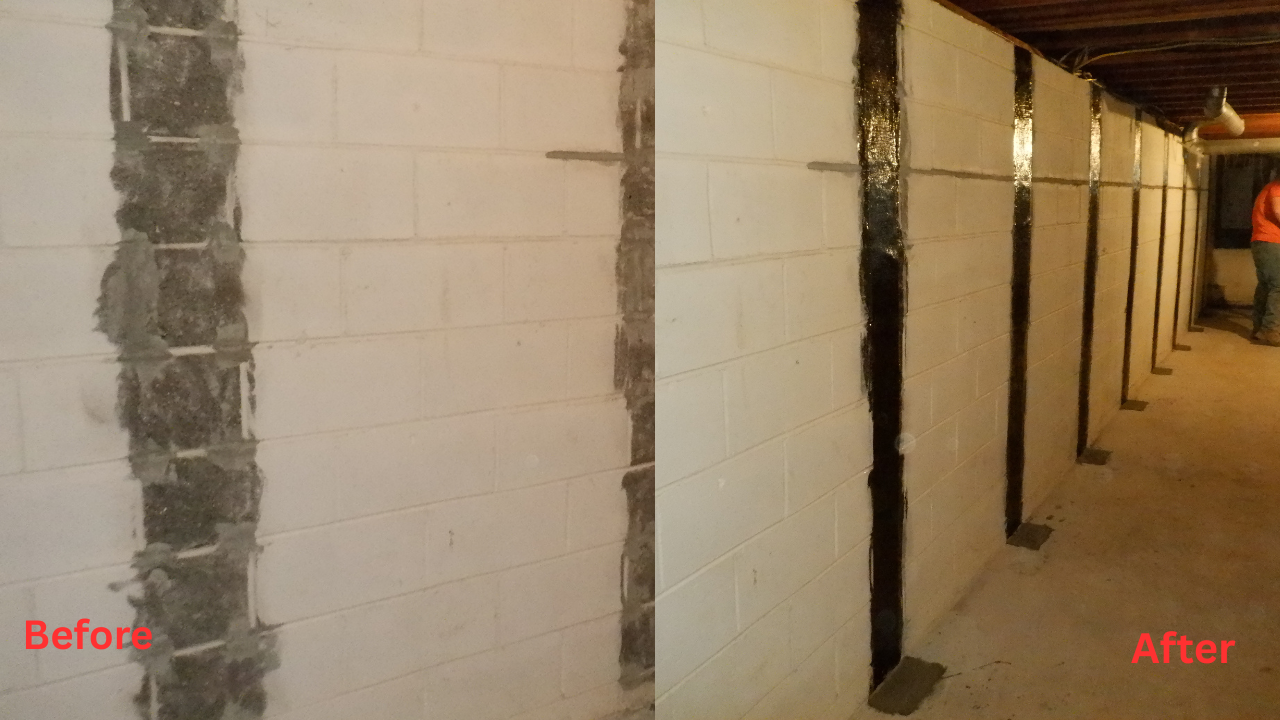

The End Result

After the installation, the Hillsborough homeowner had peace of mind knowing that their foundation wall was structurally secure again. The wall was stabilized, the cracks were sealed, and the bowing had been halted completely. They can now refinish the basement without worrying about the problem returning.

Final Thoughts

Cracked or bowing basement walls are common across New Jersey due to changing soil conditions, poor drainage, and seasonal moisture buildup. The good news is that these problems can be fixed before they become dangerous or costly.

If you’re dealing with a cracked or bowing basement wall, send us your photos and we’ll evaluate them for free. No on-site visit is needed. We’ll review your images, give you a professional recommendation, and provide an estimate at no cost.

We’ve been repairing concrete walls and floors across New Jersey and Eastern Pennsylvania for over 25 years using proven carbon fiber technology. It’s a clean, effective, and lasting solution that has helped countless homeowners restore the safety and stability of their foundations.
